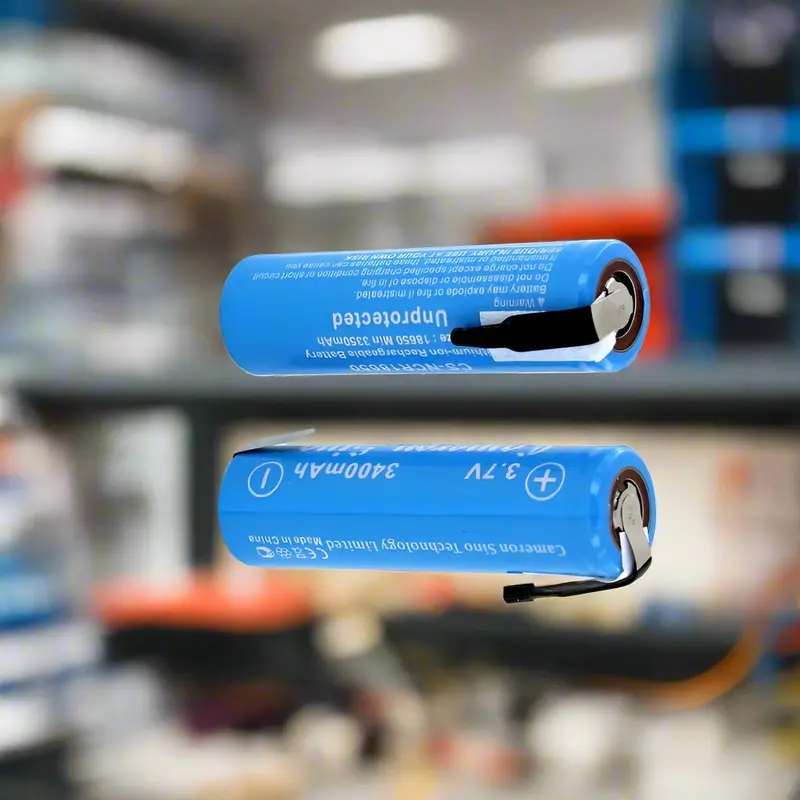

Cameron Sino CS-NCR18650NR Unprotected 18650 Battery Pack – 3400mAh (2pcs with Reverse Solder Tabs)
High-capacity 3.7V Li-ion 18650 battery pack engineered for custom pack building and high-drain applications. Designed for performance, reliability, and long cycle life.
3400mAh Rated Capacity 3.7V Output 12.58Wh 2pcs with Reverse Tabs Unprotected Cell
Technical Specifications
ModelCS-NCR18650NR Category18650 Li-ion Battery Rated Capacity3400mAh Minimum Capacity3250mAh Rated Voltage3.6V Nominal Voltage3.7V Charge Voltage4.2V ±0.05V Charge MethodCC-CV Standard Charge Current1.375A Max Charge Current3400mAh (25°C) Discharge Cut-off2.50V LifecycleApprox. 300 Cycles Operating TempCharge: 0–45°C / Discharge: -20–60°C Dimensions65.90 × 19.20 × 18.40mm Net Weight46g Gross Weight116g ColourBlue EAN4894128119722
Key Benefits
- High Energy Density: 3400mAh capacity provides extended runtime for demanding applications.
- Stable Performance: Reliable 3.7V Li-ion chemistry ensures consistent output.
- Fast Charging Capability: Up to 2.5 hours with fast charge support.
- Custom Pack Ready: Reverse solder tabs in Z configuration for easy integration.
- Cost-Effective Solution: Excellent alternative to expensive OEM battery packs.
- ISO 9001 Manufactured: Produced under strict quality control standards.
Compatible Models
18650 Lithium-Ion Applications 2pcs Pack with Reverse Solder Tabs 3.7V 3400mAh – 12.58Wh Systems
Ideal for custom battery pack building, electronics projects, and high-drain device applications.
Replaces / Configuration
18650 – Tabs in Z Configuration Reverse Solder Tab Layout
Warranty & Returns
- 1-Year Warranty against manufacturing defects
- Hassle-Free Returns with fast replacement support
Unprotected lithium-ion cells require proper battery management systems (BMS) for safe operation. Always verify configuration and specifications before installation.
Reliable Power for Custom Applications
The Cameron Sino CS-NCR18650NR battery pack delivers dependable, high-capacity performance for builders, technicians, and engineers who demand stable energy output and long cycle life. Upgrade your power solution today and experience consistent, uninterrupted performance.
